8 Point Circle Laser Dot Module With Center Dot Pattern

Large Image : 8 Point Circle Laser Dot Module With Center Dot Pattern

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiated
Packaging Details:	1pc carton
Delivery Time:	5-8 work days
Payment Terms:	T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000pcs per months

Contact Now

8 Point Circle Laser Dot Module With Center Dot Pattern

Description

Product Type:	DOE Laser Module	Lens Angle:	Various Lens Angles Optional
Light Source:	Red 100mW/Green 50mW/Blue 100mW	Wavelength:	650nm/520nm/450nm
Light Path:	Inner Light Path	Working Substance:	Semiconductor
Highlight:	8 Point Circle Laser Dot Module , Spot Laser DOE Laser Module , 650nm DOE Laser Module

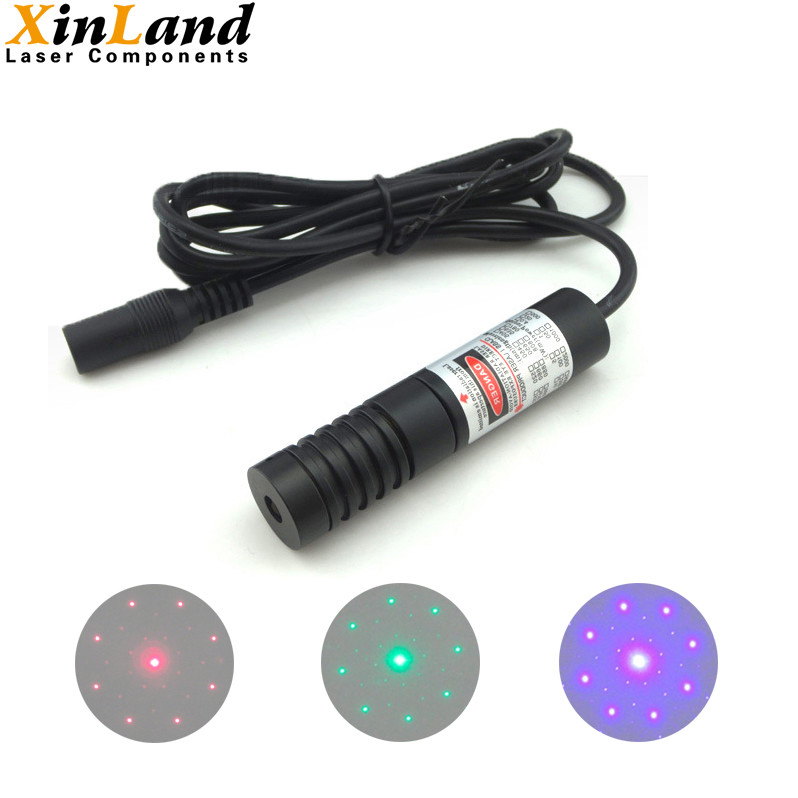

8 Point Circle Laser Dot Module with Center Dot Pattern DOE Spot Laser

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

Lens Degree 0.77°-8.25° Optional

0.77° The diameter of the circle at 3 meters is 40 mm

1.48° The diameter of the circle at 3 meters is 75 mm

2° The diameter of the circle at 1 meter is 36mm

2.04° The diameter of the circle at 3 meters is 110 mm

2.86° The diameter of the circle at 3 meters is 150 mm

3.5° The diameter of the circle at 1 meter is 63mm

3.63° The diameter of the circle at 3 meters is 190 mm

4.1° The diameter of the circle at 3 meters is 215 mm

5° The diameter of the circle at 3 meters is 262 mm

5.8° 3 meters circle diameter is 295mm

5.82° The diameter of the circle at 3 meters is 300 mm

6° The diameter of the circle at 3 meters is 314 mm

7° The diameter of the circle at 1 meter is 125mm

8.25° The diameter of the circle at 3 meters is 435 mm

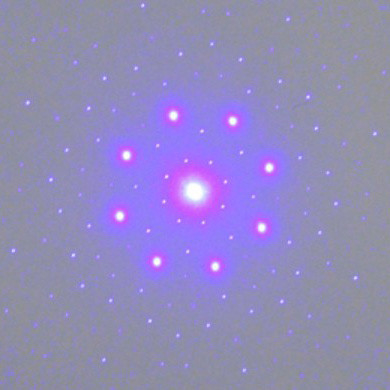

8 Point Circle Laser Dot Module With Center Dot Pattern 0

The bigger the angle, the farther the distance, the bigger the circle diameter
Use adjustable power supply, can adjustable brightness and reduce diffraction.
Wavelength, Output Power, Voltage and Size Customizable

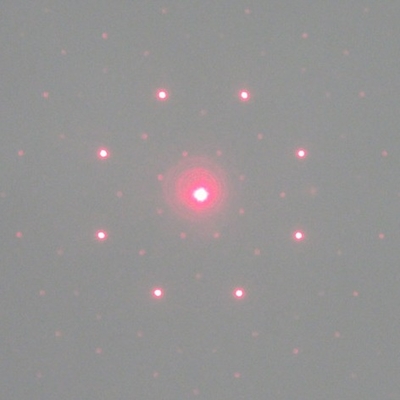

8 Point Circle Laser Dot Module With Center Dot Pattern 1

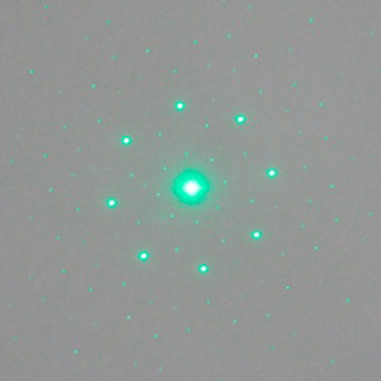

8 Point Circle Laser Dot Module With Center Dot Pattern 2

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
