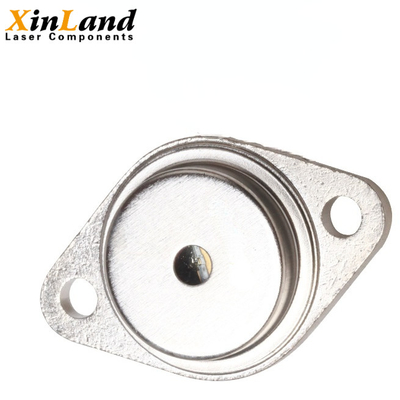

High Power Mini Multimode Laser Diode 1470nm 1490nm 1-3W

Large Image : High Power Mini Multimode Laser Diode 1470nm 1490nm 1-3W

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XINLAND
Certification:	CE
Model Number:	XLD-1470, XLD-1490 Laser Diode

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiated
Packaging Details:	1pcs/polybag,10pcs/inner box,100pcs/ctn
Delivery Time:	7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Dozen/Dozens per Day

Contact Now

High Power Mini Multimode Laser Diode 1470nm 1490nm 1-3W

Description

Place Of Origin:	Xi'an Shaanxi	Wavelength:	1470nm, 1490nm
Output Power:	1/3W, 2.5W	Package Type:	C-mount/TO3/E-Mount/H-Mount
FAC:	Optional	Mode Type:	Multimode
Highlight:	Mini Multimode Laser Diode 1470nm , Mini Multimode Laser Diode 1490nm , Mini Multimode Laser Diode 3W

High Power 1470nm 1490nm 1-3W Mini Laser Light Diode Multimode IR Laser Diode
Laser Diode Widely Used:

Laser marking technology is one of the largest application areas of laser processing. Laser marking is a marking method that uses high-energy-density lasers to locally irradiate the workpiece to vaporize or change the color of the surface material, thereby leaving a permanent mark.
Introduced high-quality 1490nm multi-mode laser diodes for medical, life science, and sensing applications, and can provide TO3, C-MOUNT, E-MOUNT, H-MOUNT packages, etc. At the same time, it provides spot shaping services. After the fast axis of the spot is compressed, the spot can be square or linear to meet different customer use scenarios.

Product Specifications:

Wavelength	Part Number	Output Power	Mode Type	Laser Type	Package	PD	FAC
1470nm	XLD-1470-001-C	1W	MM	FP	C-mount	×	○
	XLD-1470-001-3	1W	MM	FP	TO3	×	○
	XLD-1470-003-E	3W	MM	FP	E-mount	×	○
	XLD-1470-003-H	3W	MM	FP	H-mount	×	○

Wavelength	Part Number	Output Power	Mode Type	Laser Type	Package	PD	FAC
1490nm	XLD-1490-2500m-C	2.5W	MM	FP	C-mount	×	○
	XLD-1490-2500m-3	2.5W	MM	FP	TO3	×	○
	XLD-1490-2500m-E	2.5W	MM	FP	E-mount	×	○
	XLD-1490-2500m-H	2.5W	MM	FP	H-mount	×	○

1470nm 1W Package Type:

1470nm 3W Package Type:

High Power Mini Multimode Laser Diode 1470nm 1490nm 1-3W 2

High Power Mini Multimode Laser Diode 1470nm 1490nm 1-3W 3

High Power Mini Multimode Laser Diode 1470nm 1490nm 1-3W 4
