Product Details:
|
| Place Of Origin:: | Xi'an Shaanxi | Wavelength: | 445nm-1064nm |
|---|---|---|---|
| Fiber Type: | MMF | Fiber Core: | 9um |
| Package Type:: | Coaxial | Connector: | FC |
| Highlight: | Coaxial Package Fiber Laser Diode,1064nm Coaxial Fiber Laser Diode,SMF-28 Coaxial Fiber Laser Diode |
||

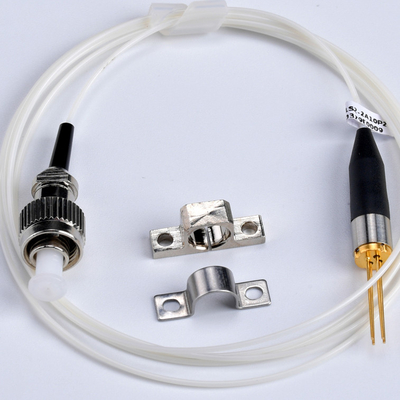

High Quality 445nm-1064nm Coaxial Package Fiber Laser Diode Wavelength Optional SMF-28 Strong Fiber Laserske Diode
Product Details:
Type: Fiber Coupled Laser Diode
Wavelength: 445nm-1064nm
Fiber Type: MMF
Fiber Core: 9um
Package Type: Coaxial
Connector: FC
Product Specifications:
| Wavelength | Output power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 445nm | 50mW | SMF-28 | 9um | Coaxial | FC/SMA | × | × |
| 488nm | 20mW | SMF-28 | 9um | Coaxial | FC/SMA | × | × |
| 505nm | 20mW | SMF-28 | 9um | Coaxial | FC/SMA | × | × |
| 520nm | 30mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 635nm | 50/80/100mW | SMF-28 | 9um | Coaxial | FC/SMA | × | × |
| 650nm | 20-100mW | SMF-28 | 9um | Coaxial | FC/SMA | × | × |
| 670nm | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 685nm | 15mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 785nm | 10/30mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 808nm | 30mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 830nm | 50/100mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 850nm | 20/50mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 880nm | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 905nm | 2/30mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 940nm | 50mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 980nm | 10/15/25mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| 1064nm | 10-50mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
Note before purchase:
Choose the right fiber length according to your own requirements. The default product does not have a driver board, so if you need a driver board, please contact customer service in advance.
Multimode & Single mode:
1.The core size of single mode fiber is mostly 3-9μm, wide transmission band frequency, large capacity, small modal dispersion,long transmission distance.
2.Most of the multimode fiber cores are 105 μm,The transmission distance is small,the mode dispersion is large, and the generated light is dispersive.
OPERATING NOTES
◆Avoid eye and skin exposure to direct radiation during operation.
◆ Do not bend the fiber wire excessively to avoid the core breaking.
◆When the optical fiber module is not in use, please install the dust cover at the optical fiber connector.
◆Do not place heavy objects on the optical fiber, and do not pull the optical fiber excessively to avoid damage to the optical fiber.
