Product Details:
|
| Place Of Origin:: | Xi'an Shaanxi | Wavelength: | 635nm 650nm |
|---|---|---|---|
| Fiber Type: | MMF | Fiber Core: | 50-200um |
| Package Type:: | Coaxial/8-Pin/4-Pin/14-Pin/9-Pin | Connector: | FC |
| Highlight: | 650nm Red Fiber Laser Diodes,635nm Red Fiber Laser Diodes,Five Package red laser diode |
||

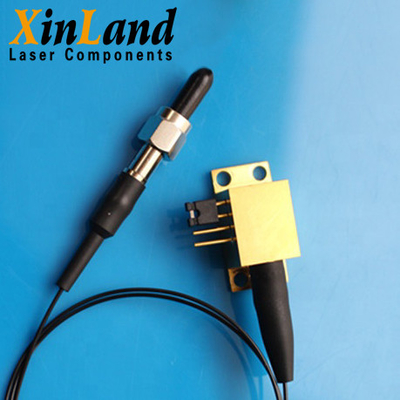

High Brightness Red Laser 635nm 650nm Fiber Laser Diodes Medical Diode Laser Five Package Type
Product Details:
Type: Fiber Coupled Laser Diode
Wavelength: 635nm 650nm
Fiber Type: MMF
Fiber Core: 50-200um
Package Type: Coaxial/8-Pin/4-Pin/14-Pin/9-Pin
Connector: FC
Product Specifications:
| Wavelength | Output Power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 635nm | 5mW | MMF | 105um | Coaxial | FC | √ | × |
| 100-300mw/1W | MMF | 105um | Coaxial | FC | × | × | |
| 100-300mw | MMF | 105um | 8-Pin | FC | ○ | √ | |
| 100mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 400mW | MMF | 105um | 4-Pin | FC | ○ | × | |
| 400mW | MMF | 105um | 14-Pin | FC | √ | √ | |
| 800mW | MMF | 50um | Coaxial | FC | × | × | |
| 800mW | MMF | 50um | 9-Pin | FC | √ | √ | |
| 1W | MMF | 105um | 9-Pin | FC | √ | √ | |
| 1.8W | MMF | 200um | Coaxial | FC | × | × | |
| 1.8W | MMF | 200um | 9-Pin | FC | √ | √ | |
| 650nm | 30-150mW | MMF | 105um | Coaxial | FC | √ | × |
| 30-100mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 100/150mW | MMF | 105um | 8-Pin | FC | ○ | √ | |
| 800mw | MMF | 105um | 4-Pin | FC | ○ | × | |
| 800mw | MMF | 105um | 9-Pin | FC | √ | √ |
Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
Multi-package form of single-mode/multi-mode fiber output can be used: 2-Pin/4-Pin/8-Pin/9-Pin/14-Pin/Coaxial/HHL-01/P4/P5.
Main product wavelengths: 405nm, 445nm, 488nm, 505nm, 520nm, 525nm, 635nm, 658nm, 680nm, 785nm, 808nm, 830nm, 850nm, 860nm, 880nm, 915nm, 940nm, 980nm, 1064nm, 1210nm,1280nm,1310nm, 1330nm, 1450nm, 1470nm, 1490nm, 1530nm, 1550nm, 1720nm, 1900nm, 1920nm.
Laser Color: UV, Blue-violet, Blue, Green, Orange-red,Red, and Infrared light.
