Product Details:
|
| English Name: | YAG Laser And Fiber Cutting Machine Laser Protection Glasses | OD: | 4+ |
|---|---|---|---|
| VLT: | 20% | Available Frame: | 6 Styles |
| MOQ: | 100pcs | Quantity Each Carton: | 300pcs |
| Special For: | 1064nm Laser | Mainly For: | 1070nm 1080nm 1100nm Laser |
| Highlight: | 190nm Laser Proof Goggles,420nm Laser Protection Glasses,1300nm Laser Protection Glasses |
||

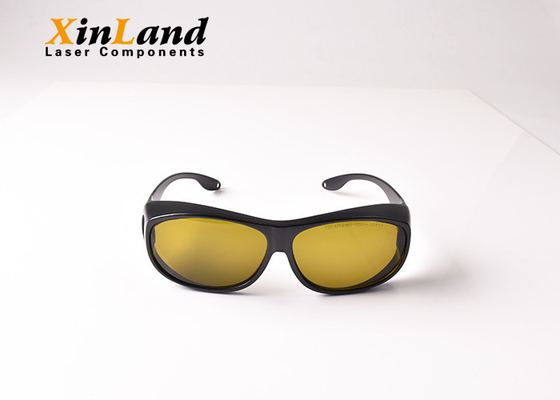

190~420nm 850~1300nm YAG Laser and Fiber Cutting Machine Laser Protection Glasses
Technical Data:
Specifications:
| Protect Wavelength | 190~420nm & 850nm~1300nm |
| OD | 4+ 6+ |
| VLT | 35% |
| Frames | 5 styles |
| Especial for | YAG 1064nm Laser, FIber Laser 1070nm, 1080nm, 1100nm Laser Machine |
Why Do We Need a Laser Safety GLasses? Laser Radiation Hazards
1. Thermal effects are the predominant cause of laser radiation injury, but photo-chemical effects can also be of concern for specific wavelengths of laser radiation.
2. Moderately powered lasers can cause injury to the eyes.
3. High power lasers can also burn the skin.
4. High Power lasers are so powerful that even the diffuse reflection from a surface can be hazardous to the eye.
Xinland Services Details:
1. Shipping Ways: We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX, EMS, Air freight and by Sea. We will ship out the products within three days after full payment.
2. Payment: Accept payment via TT(Bank transfer), Western Union, MoneyGram, ESCROW, and Alipay.
3. Warranty: Provide 6 months warranty for all products. Please contact us if you want to know our detail warranty term.
OD Diagram :
Laser safety glasses catalog:
| Model | Protect Wavelength |
Optical Density |
VLT | Application |
| CO2 |
5000~11000nm (Special for 10600nm) |
4+ | 20% | Especially used for CO2 laser machine high power cutting and engraving , Frame 3 |
| XL-T1 | 190~540nm | 4+ | 30% |
Especially used for 405nm & 532nm laser;1,2,3,4,5,6 frames are available |
| XL-T2 |
190~440nm & 600~760nm (Special for 635nm,660nm,750nm) |
4+ | 30% |
Especially used for He-ne Laser ,semiconductor red laser ,671nm solid state laser or red led; 1,2,3,4,5,6 frames are available |
| XL-T3 |
190~450nm & 800~1100nm (Special for 980nm,1064nm,1070nm) |
4+ | 60% |
Especially used for solid state laser , semi conductor laser ,frame 1,2,4,5,6 is available for this type |
| XL-T3G |
190nm~550nm & 800~1100nm (Special for 532nm, 980nm, 1064nm,1070nm, |
4+ | 30% | Especially used for 532nm laser, 1064nm yag laser laser, 1070nm fiber laser, 1080nm laser and cutting machine with 532nm green laser ;1,2,4,5,6 frames are available |
| XL-T4 |
190~450nm & 800~1700nm (Special for 980nm,1064nm,1070nm, 1080nm,1100nm) |
4+ | 35% | Especially used for 1064nm yag laser laser, 1070nm fiber laser, 1080nm laser and cutting machine with 532nm green laser ;1,2,4,5,6 frames are available |
| Xl-T5 |
190~420nm & 850~1300nm (Special for 1064nm,1070nm,1080nm |
4+ | 28% |
Especially used for Laser processing, laser cutting machine ,like yag 1064nm laser, fiber laser 1070nm, 1080nm, 1100nm laser machine ;1,2,3,4,5,6 frames are available |
| XL-T5G |
190~540nm & 850~1300nm (Special for 532nm,1064nm,1070nm, 1080nm,1100nm) |
4+ | 10% |
Especially used for Laser processing, laser cutting machine ,like 532nm laser, yag 1064nm laser, fiber laser 1070nm, 1080nm, 1100nm laser machine 1,2,3,4,5,6 |
| XL-T6 |
190~380nm & 750~860nm (Special for 808nm,810nm,830nm) |
5+ | 60% | Especially used for infared laser 808nm , CTP laser printing,laser cosmetology operator ;1,2,3,4,5,6 frames are available |
| IPL-3 | 190~2000nm | 4+ | 30% | Especially used for IPL cosmetology operator ;1,2,4,5,6 frames are available |
| XL-BGR |
190~540nm & 600~760nm (Special for 445nm,450nm,473nm,51 5nm,520nm,532nm,635n m,660nm) |
4+ | 8% | Especially used for purple and blue and green and red laser ;1,2,3,4,5,6 frames are available |
XL-BR |
190~490nm & 600~760nm (Special for 445nm,450nm,473nm,63 5nm,660nm) |
4+ | 30% | Especially used for blue and green laser ;1,2,3,4,5,6 frames are available |
| Cosme-tology Cover | From UV to IR | 10+ | 0% | Especially used for IPL & laser Cosmetology Customers |
