Product Details:
|
| Name: | 405nm 20mw Laser Diode | Power: | 20mw |
|---|---|---|---|
| Package: | TO18 | PD: | NO |
| MOQ: | 200pcs | Diameter: | 5.6mm |
| Highlight: | visible laser diode,laser dot diode |
||

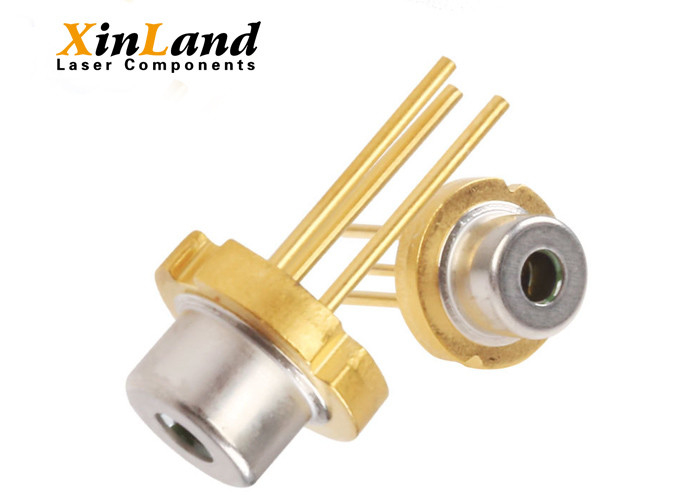

405nm 5.6mm Diameter 20mw Visible Light Blue Violet Mini Laser Diode
Features
1. Low .operation current
2. High reliability
3. Low divergence angle
4. Standard optical power output:5mw (CW)
5. TO-5 (ψ5.6mm) Packaged, with Pb-free window cap.
Applications
1. Motion sensor
2. Medical application
3. Pumping source for solid state laser
4. Infrared illumination
5. Industrial application
Technical Datasheet:
| Operating current | 55-80mA |
| Operating voltage | 4.8-5.6v |
| Storage Temp | -40 ~ +85 |
| Diameter | 5.6mm |
| Wavelenth | 405nm |
| Power | 20mw |
405nm Laser Diode Available:
