Product Details:
|
| Product Name: | Product Name190~420nm&860~1300nm Safety Window | Dimension: | 1280x1000x5mm |
|---|---|---|---|
| Gross Weight: | 80kg | Packing: | 10pcs/carton |
| TH: | 5mm | OD: | 4+ |
| Highlight: | 405nm Purple Laser Safety Sheet,1064nm Laser Filter Glass,405nm Purple Laser Filter Glass |
||
1064nm YAG Laser Protection Window OD4+ Protective Plate 405nm Purple Laser
The Laser Safety Windows supplied by Xi’an Xinland International Co., Ltd are chosen from European’s superior PMMA material. Meanwhile, The Laser Safety Windows are produced at high standard and precise formula according to the European CE and USA ANSI. The products are in high protection grade. They are produced without any optical distortion and flaw.
Technical details:
Visible light Transmittance:28%
Optical Density(OD): 4+
Thickness:5mm
| Dimension | 1280*1000*5mm |
| Package | 10pcs/carton |
| G.W | 80kg |
| Protection Wavelength | 190~420nm&860~1300nm |
Technical details:
Notes:
1. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
2. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
Credit management:
1: We are Professional for laser safety glasses over 10 years.
2: One of the company's rule is quality always first
3: Skilled staff, we provide our staffs in their job a brisk and pleasure envirement;
they're trained monthly on skills and job responsibilities;
Why choose Xi'an Xinland International Co.,Ltd?
Because we provied high quatity laser safety winodw, the material is European's superior PMMA and Covering many bands, Inciuding: 190~550nm; 580~750nm; 800~1100nm; 190~450nm&800~1700nm; 190~420nm&850~1300nm and Co2 laser.
Laser Safety Window Catalog:
| Series NO. | Protection Wavelength | Dimension(mm) | OD |
| XL1PW4D3T | 190~550nm | 1280*1000*3.3mm | 4+ |
| XL1PW5D5T | 190~550nm | 1280*1000*5mm | 5+ |
| XL2PW4D5T | 580nm~750nm | 1280*1000*5mm | 5+ |
| XL3PW4D5T | 800~1100nm | 1280*1000*5mm | 4+ |
| XL3PW6D5T | 800~1100nm | 1280*1000*5mm | 6+ |
| XL3PW8D5T | 800~1100NM | 1280*1000*5mm | 8+ |
| XL3PW4GD5T | 190~540nm & 800~1100nm | 1280*1000*5mm | 4+ |
| XL4PW4D5T | 190~450nm & 800~1700nm | 1280*1000*5mm | 4+ |
| XL5PW4D5T | 190~420nm & 860~1300nm | 1280*1000*5mm | 4+ |
| XL6PW4D3T | 1064nm&10600nm | 1200*1000*3.3mm | 4+ |
| XL6PW5D5T | 1064nm&10600nm | 1200*1000*5mm | 5+ |
| XL6PW6D5T | 1064nm&10600nm | 1200*1000*5mm | 6+ |
| XL7PW4D5T | 10600nm | 1200*1000*5mm | 6+ |
Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.
Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
Packaging & Delivery:
Packaging Details: Carton
Delivery Time: 8-13 days
Lead Time: 8-13 days

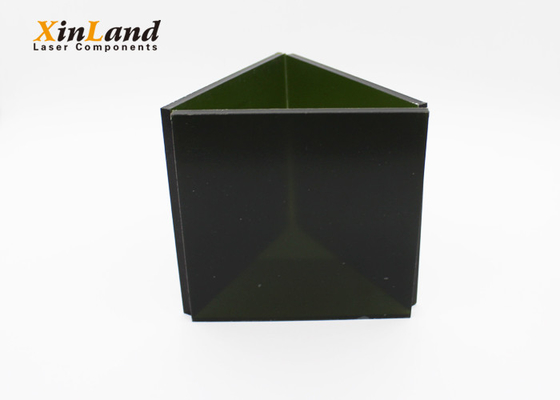

Product Photo:
