Product Details:
|
| Operation Mode: | CW Or Modulation | Modulation: | Analog Or TTL Modulation 0~30Khz |
|---|---|---|---|
| Laser Wavelength: | 638nm | Laser Power: | 6000mw |
| Power Stability: | <±5% Per 2 Hrs | Beam Diameter(1/e2): | <3mm |
| Beam Size: | 7x5mm | MTTF: | 10,000hours |
| Highlight: | 638nm Adjustable Red DPSS Laser,638nm 6000mw DPSS Laser Module,6000mw Red DPSS Laser |
||

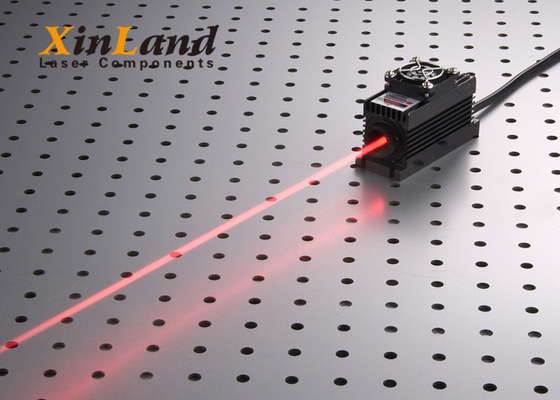

638nm 6000mw Red DPSS Laser Kit Adjustable Power Supply with TTL Modulation Power Supply
Application:
It is wildly used in fields of Medical, laser demonstating,isotope separation,high density optical storage, Precision material processing,photoetching, spectrum analysis and so on.
Key Features:
High power and high stability
Good beam shape Long lifetime
Low cost and easy operating
Specifications:
| Model No. | XL638-CPY |
| Wavelength | 638+/-6 nm |
| Spatial Mode | Multi mode |
| Operation Mode | CW or Modulation |
| Beam Height | 29mm |
| Output Power | 6000mW |
| Beam Size | 7x5mm |
| Beam Divergence(full angle) | 2mrad |
| Power Stability | <3% per 4 hrs |
| Warm Up Time | <1 minute |
| MTTF | 10,000 hrs |
| Laser head dimensions | 204(L)x132(W)x53(H)mm3(without fan) |
| Power Supply |
A. OEM type XL-PS-I: 143(L)x40(W)x68(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
| Modulation | 0~30khz Analog or TTL |
Packaging Details: 1pc/inner box 8pcs/carton
Delivery Time: Shipped in 15 days after payment
