Product Details:
|
| Operation Mode: | CW Or Modulation | Modulation: | Analog Or TTL Modulation 0~30Khz |
|---|---|---|---|
| Laser Wavelength: | 532nm | Laser Power: | 1000mw |
| Power Stability: | <±5% Per 2 Hrs | Beam Diameter(1/e2): | <3mm |
| Highlight: | Diode Pumped Solid State Laser,TTL Modulation Green DPSS Laser Kit,520nm 1000mw DPSS Laser Kit |
||

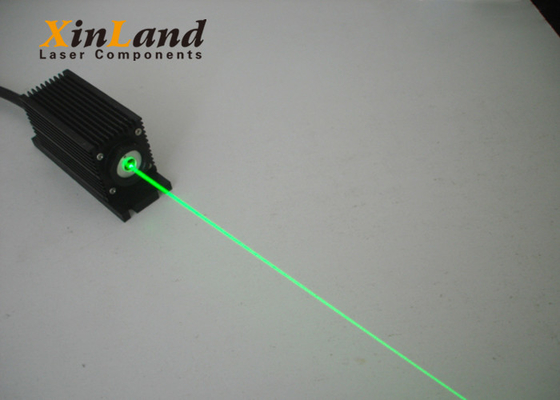

520nm 1000mw TTL Modulation Adjustable Green DPSS Laser Kit with Digital Power Supply
Application:
It is wildly used in fields of Medical, laser demonstating,isotope separation,high density optical storage, Precision material processing,photoetching, spectrum analysis and so on.
Key Features:
High power and high stability
Good beam shape Long lifetime
Low cost and easy operating
Specifications:
| Model No. | XL520SD-1000 |
| Wavelength | 520+/-5 nm |
| Spatial Mode | Near TEM00 |
| Output Power | 1000mW |
| Operation Mode | CW or Modulation |
| Beam Height | 29mm |
| Beam Size | 4.5x4mm |
| Beam Divergence(full angle) | 1.2x0.5mrad |
| Power Stability | <3% per 4 hrs |
| Temperature Stabilizing | TEC |
| Warm Up Time | <1 minute |
| MTTF | 10,000 hr |
| Laser head dimensions | 114(L)x44(W)x65(H)mm3 |
| Power Supply |
A. OEM type XL-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
|
B. Lab type XL-PS-IIS: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
|
C. Lab Adjustable type XL-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |
|
| Modulation | 0~30khz Analog or TTL |
Warranty:we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.
